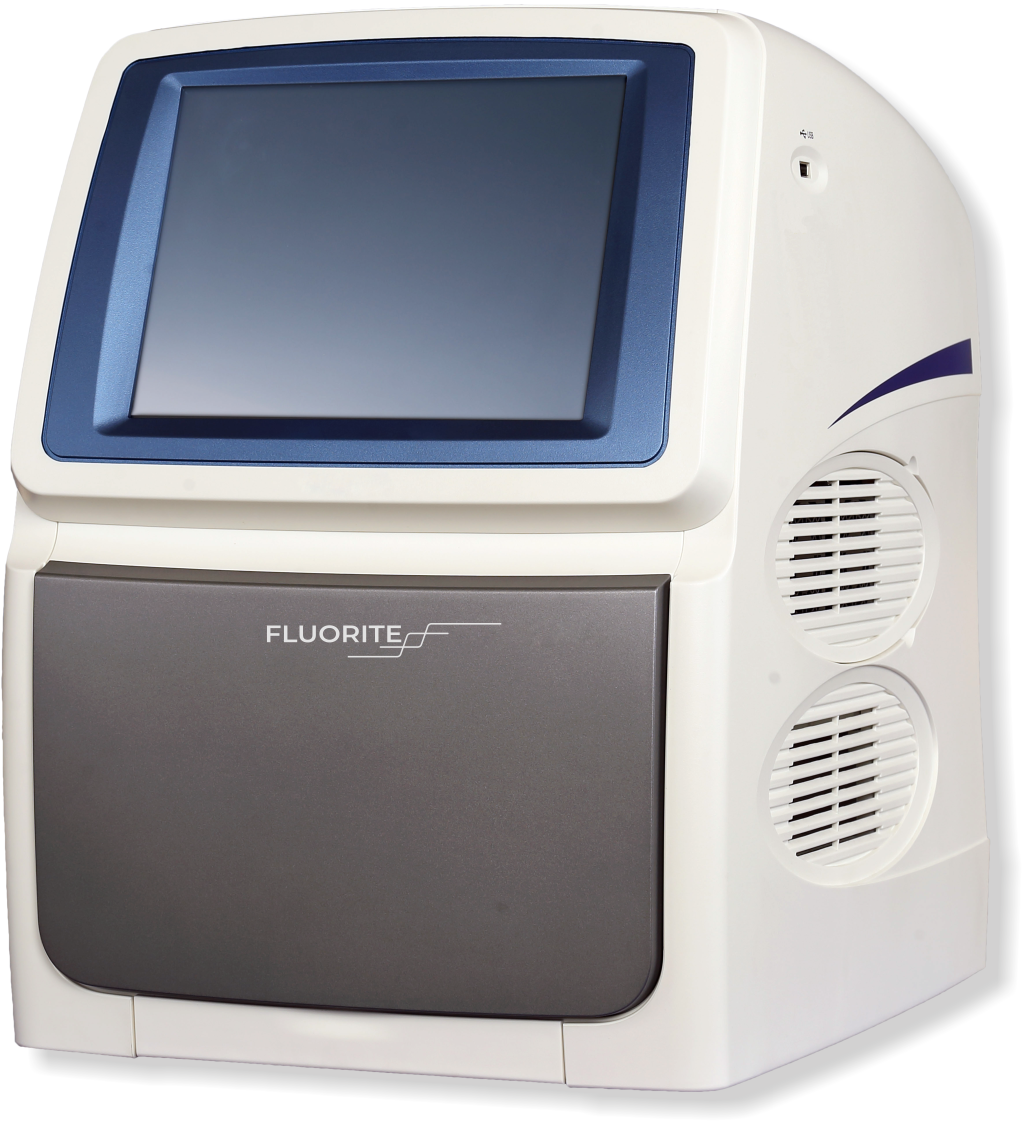

FLUORITE® is a modern technological solution for conducting real-time PCR analysis, ensuring reliability, high performance, and quality of analysis. Designed for measuring fluorescence intensity during polymerase chain reaction (PCR) in biological samples.
The system is suitable for clinical diagnostic laboratories and laboratories of other profiles, allowing for the solution of various diagnostic tasks including quantitative and qualitative detection of infections, research of single nucleotide polymorphisms, and gene mutations in the human genome.
FLUORITE® offers precise and efficient temperature control, high-speed thermal cycling, and detection, making it an ideal choice for modern molecular diagnostics.
FLUORITE® combines cutting-edge technology with user-friendly design to deliver reliable and precise real-time PCR analysis for a wide range of applications in molecular diagnostics and research.
Rapid and accurate detection of bacterial and viral pathogens with high sensitivity and specificity
Analysis of gene expression, SNP genotyping, and mutation detection for research applications
Comprehensive testing solutions for animal health and disease monitoring
Detection of foodborne pathogens and GMO testing for quality control
DNA profiling and human identification for forensic investigations
Cancer biomarker detection and molecular profiling for research
Flexible platform for developing and validating custom PCR assays
Detection of environmental pathogens and monitoring of water quality
Experience industry-leading temperature accuracy of ±0.1°C across all 96 wells, ensuring consistent and reliable PCR results every time. The Peltier-based system provides rapid heating (7°C/sec) and cooling (5°C/sec) for efficient thermal cycling.
Simultaneously detect multiple targets in a single reaction with our advanced 4-channel optical system. Compatible with major fluorescent dyes including FAM/SYBR Green I, HEX/VIC, ROX/Texas Red, and Cy5, enabling complex experimental designs and multiplex assays.
The 7-inch touchscreen interface provides a user-friendly experience with drag-and-drop protocol setup, real-time data visualization, and one-touch data export. The system's compact footprint (475 × 355 × 484 mm) fits comfortably in any laboratory setting.
Connect via USB or Ethernet to export results directly to your laboratory information system (LIS). The system supports remote monitoring and control, allowing you to track experiments from anywhere in the lab or office.
Designed for continuous operation with minimal maintenance. The LED light source provides consistent excitation without the need for frequent bulb replacements, while the robust construction ensures years of trouble-free service.
From infectious disease testing to genetic research, food safety to forensic analysis, FLUORITE® adapts to your needs. The temperature gradient function allows optimization of annealing temperatures across the block in a single run.
The FLUORITE® system features industry-leading temperature control with ±0.1°C accuracy across all 96 wells, ensuring consistent and reliable PCR results. The advanced Peltier-based system delivers rapid heating at 7°C/sec and cooling at 5°C/sec, significantly reducing overall run times. This precision is maintained through intelligent algorithms that compensate for ambient temperature fluctuations, making it ideal for sensitive applications requiring exact temperature control.
FLUORITE®'s 4-channel fluorescence detection system enables simultaneous analysis of multiple targets in a single reaction. Compatible with all major fluorescent dyes including FAM/SYBR Green I, HEX/VIC, ROX/Texas Red, and Cy5, it supports complex experimental designs. The system's high-sensitivity optical system can detect even low-abundance targets, while the advanced signal processing minimizes background noise, delivering clear, reliable results for both research and diagnostic applications.
The FLUORITE® system is powered by user-friendly software with a 7-inch touchscreen interface that simplifies protocol setup and data analysis. Features include drag-and-drop experiment design, real-time amplification plots, and automatic threshold determination. With USB and Ethernet connectivity, results can be easily exported to laboratory information systems (LIS) or external storage.
Desired level of automation: single analysis step or complete cycle
Cost of consumables and equipment maintenance
Number of samples to be processed per working day (average and maximum)
List of tests required per sample
Type and quality of incoming biological material
Sample logistics and result turnaround time
Potential for increasing test volume
LIS and barcoding
Laboratory space considerations
| Parameter | Specification |
|---|---|
| Thermal Block Format | 96 × 0.2 ml |
| Reaction Volume | 10-100 µl |
| Temperature Range | 4°C - 100°C |
| Heating Rate | 7°C/sec |
| Cooling Rate | 5°C/sec |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.3°C |
| Optical System | 4-color fluorescence detection |
| Excitation Channels | 470nm, 530nm, 585nm, 625nm |
| Emission Channels | 520nm, 555nm, 610nm, 660nm |
| Data Acquisition | Real-time, endpoint, melt curve |
| Display | 7-inch touchscreen |
| Connectivity | USB 2.0, Ethernet, Wi-Fi (optional) |
| Power Requirements | 100-240 VAC, 50/60 Hz, 300W |
| Dimensions (W × D × H) | 475 × 355 × 484 mm |
| Weight | 30 kg |
| Operating Conditions | 15°C - 30°C, 20-80% RH (non-condensing) |
| Storage Conditions | -20°C to 60°C, 10-90% RH |
| Compliance | CE, IVD, RoHS, WEEE, EMC Directive |
ISS offers a wide range of X-ray equipment, including Vision equipment and software. Extensive experience
in the field of equipment for medical centers as well as qualified specialists allow us to work with
leading clinics in Europe.
All medical equipment that we provide you can get quickly and at the best price.
1.1 Beam specifications: Energy and radiation fields
The ElectronFlash linear accelerator works in electron mode only.
The standard device is provided with two different nominal electron energies: 7 MeV and
9 MeV.
ElectronFlash can provide different radiation fields, ranging from Ø 1 cm up to Ø 12 cm.
The flatness of lateral profiles, measured at zref depth, is equal or better than 7% at
the nominal distance 100 cm
between the sample and the electron exit window.
The symmetry of the radiation field is better than 3%.
Fields are available both in circular and in squircle shape with side (diameter) 1 cm, 2
cm, 3 cm, 4 cm, 5 cm, 6
cm, 7 cm, 8 cm, 9 cm, 10 cm, 12 cm. Additional fields can be provided on request.
1.2 Available Dose Rates
The ElectronFlash can vary its dose rate from 0.005 Gy/s up to 1200 Gy/s with reference
field Ø 10 cm.
Dose rate is varied by modifying all the parameters hereinafter listed, being these
settings one each other
independent:
− E-gun Peak current;
− E-gun pulse duration: it can be set in the range from 0.2 μs up 4 μs;
− Pulse Repetition Frequency (PRF): it can be set in the range from 1 Hz up 350 Hz with
1 Hz increment.
The ElectronFlash Control Interface allows to program an irradiation in three
modalities:
1. Single pulse irradiation;
2. Train of pulses;
3. Irradiation halted by Monitor Units reading.
If ElectronFlash irradiates in modality 2 (Train of pulses), intervals between pulse
trains (i.e., m pulses followed
by n pulses) from 5 ms to 1 min are programmable by the End User.
1.3 Control system
Machine and beam diagnosis is designed according to IEC 60601-2-1, the standard
describing the requirement
for a Medical Radiotherapy linac (Medical electrical equipment - Part 2-1: Particular
requirements for the basic
safety and essential performance of electron accelerators in the range 1 MeV to 50 MeV).
Safety and security interlocks are provided and displayed, in particular all the
interlocks that guarantee the safety
of the operators (doors, emergency buttons). Before executing any irradiation, the beam
energy and the desired
dose rate must be programmed and consequently displayed at Control System.
The Human Machine Interface (HMI) allows to display and edit the parameters hereinafter
listed:
− E-gun Peak current;
− E-gun pulse duration: it can be set in the range from 0.2 μs up 4 μs;
− Pulse Repetition Frequency (PRF): it can be set in the range from 1 Hz up 350 Hz
with
1 Hz increment.
− Monitor Unit – both MU set and delivered, as per EN 60601-2-1;
− Number of pulses: Number of pulses set and delivered.
